Stunning new Belize 66 takes shape as the striking deck plug is completed
by Riviera Australia 17 Feb 2018 13:13 AEDT

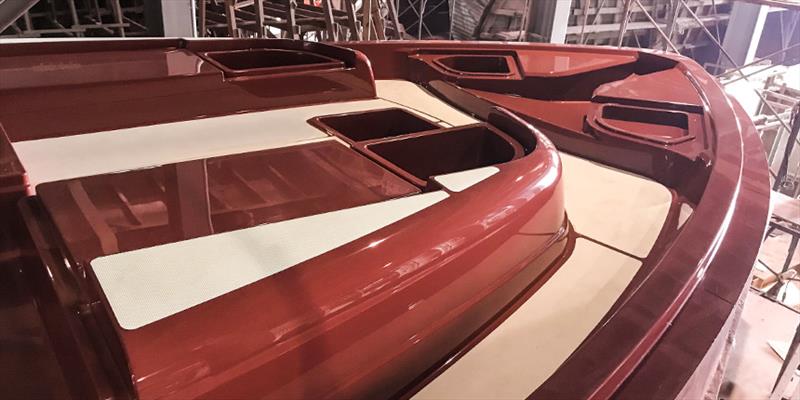

Foredeck, showing the raised anchoring area for ease of operation © Riviera Australia
Lamination of the large and complex hull of the Belize 66 is being completed following meticulous preparation of the three moulds that are used to develop it.

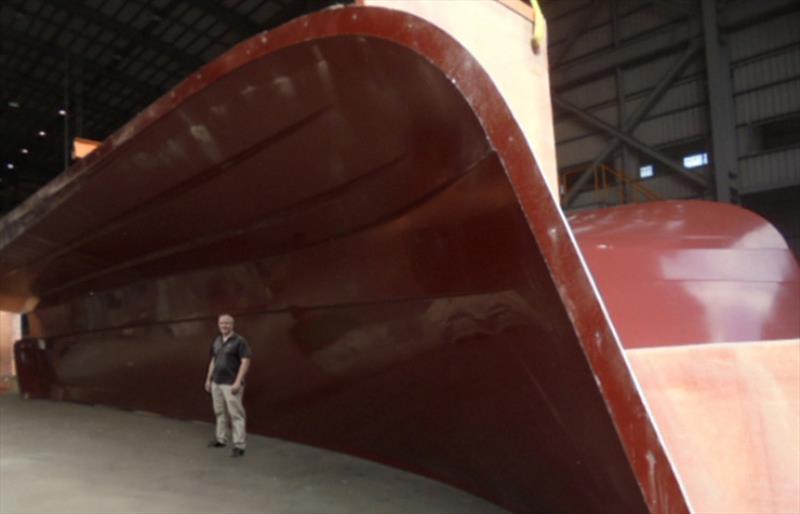

The three separate hull moulds were released from their plugs and assembled together on a slide-out track system and steel base framework ready for final detailing before lamination could begin. Detailing of the moulded surface was a critical stage to ensure that the finished surface of every Belize 66 hull is of the highest standard.
Specially designed rings were very precisely set in place in the hull mould to accommodate the Volvo Penta IPS3 drive units.
Gelcoat was then applied to the mould and the lamination process began. External laminates were applied with care to the gelcoat to ensure an exact resin-to-fibreglass ratio to guarantee hull strength as well as optimum weight to deliver the best possible vessel performance.
Deck mould takes shape
While the hull was being laminated, final detailing of the lower deck headlining plug was completed. This section will provide the interior lining of all the forward bathrooms, the internals of the under-dash areas as well as the stairway leading to the accommodation deck.
The full deck plug has been completed and non-skid surfaces applied. This is a very complex shape, accommodating all of the hatches, lockers, drains and style lines to create the desired striking visual impact of the Belize 66.
Lamination of all three bathroom moulds for the first Belize 66 is also complete.
As well as the VIP guest and third bathroom, the team will build three master bathroom moulds to accommodate the flexible master suite design options available in the Belize 66.
Hardtop ready for moulding
Plugs for both inner and outer surfaces of the hardtop have been completed.
A non-skid finish was applied to the finished surface of the outer plug after which final detailing was completed then sealer and wax applied ready for moulding.
The hardtop inner plug has been joined ready for the first coat of tooling gel in preparation to take the mould.
The forward section of the tender garage as well as inner and outer garage door shell moulds have also been completed.
We will continue to keep you informed about the progress of this magnificent new motor yacht through to her World Premiere at the 2018 Fort Lauderdale International Boat Show beginning on October 31.
