How the renovated style of A115 highlights interaction between exteriors and interiors
by Arcadia Yachts 8 Jun 2020 05:01 PDT
previous next - 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20

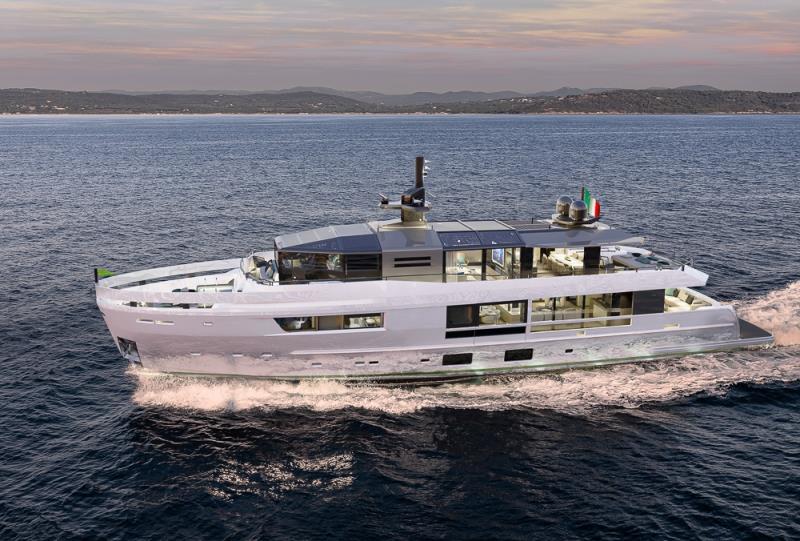

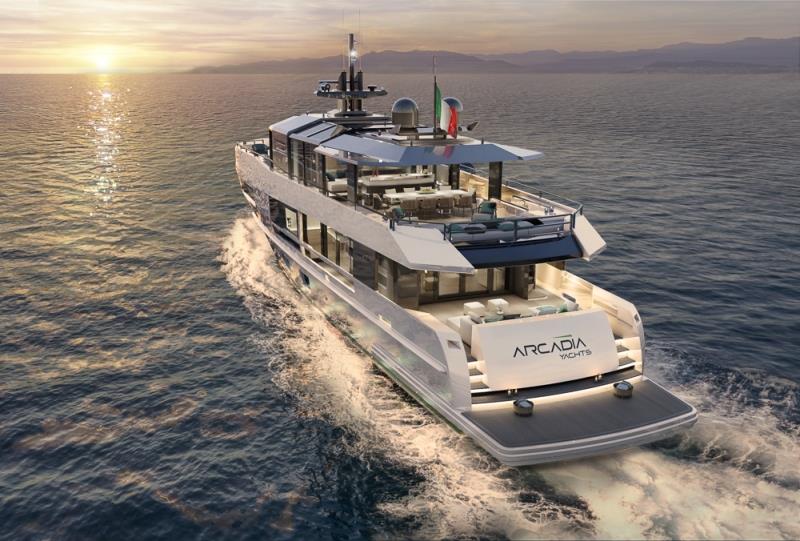

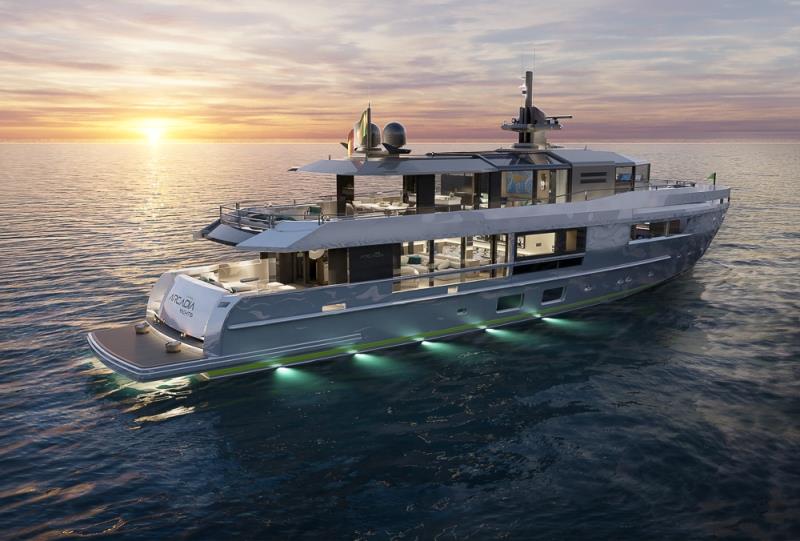

Structural lightness and visual lightness - these are the keywords behind the concept of the Arcadia Yachts A115. The fifth unit is currently under construction and will make its debut at the beginning of 2021.
On the A115, the contrast between interiors and exteriors vanishes, creating a single environment that flows naturally between inside and outside. The perfect example is the upper deck, where 140 square metres are designed to create one convivial setting that has the jardin d'hiver at its heart, with full-height windows that provide close contact with the surrounding environment in every season of the year. On the A115 - as on every other ARCADIA yacht - there is no stepping inside or outside, you just experience the whole environment.
A 7-star experience
On the fifth A115, the unique inside-outside relationship (solidly established in ARCADIA's DNA) is highlighted by the style of the interiors and exteriors, which Arcadia Yachts has renovated with Hot Lab. The elements characterising the exteriors - the ones with the greatest impact and that raise the greatest expectations - can be found aboard and especially in the interiors.
"If we were to make just two examples, we could pick the jardin d'hiver on the upper deck and the arch that connects the aft and stern of the yacht" explains Enrico Lumini, from Hot Lab. "In the jardin d'hiver we worked so that the transparency clearly perceived when viewing the A115 from outside can be experienced inside as well. We achieved this with low furniture items concentrated inside the volume, away from the uprights and the large windows. Even for large elements, such as the 75" TV, we found solutions that reduce the visual impact as much as possible, such as hanging solutions."
"The arch is a very strong feature, a distinguishing trait of ARCADIA's A range," adds Lumini. "Arches matching the main one have been included on the decks, to bring to mind the exterior line when standing inside. I am referring in particular to the lobbies and stairs, which are very important areas to valorise on the A115."
When designing the interiors of the A115, the intention from the very beginning was to give guests the same experience they can enjoy in a 7-star hotel, in which style, furniture elements and technical facilities are combined in a completely original manner.
The idea was to start from designing the architectural structure and then identifying the contents that would best integrate into it and valorise it. This approach is the complete opposite to what usually occurs when designing a yacht this size, in which the components are integrated in the structures. The decision to use loose components essentially everywhere in the A115 (cabins, hall, dining area, etc.) is linked to enabling the owner to easily replace the components if they wish, which allows them to choose from a broad range of solutions.

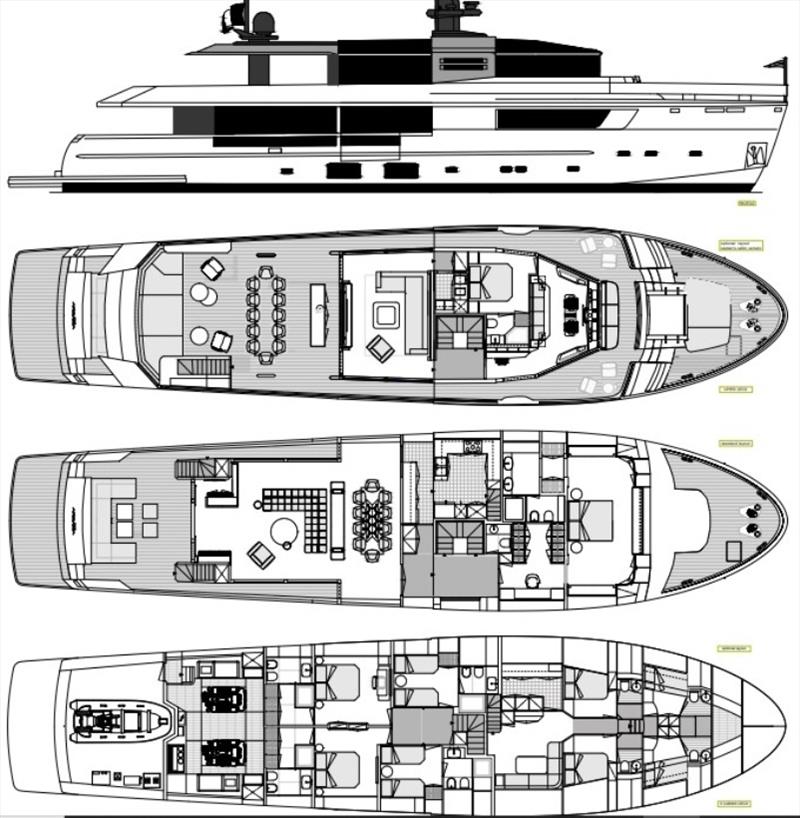

The A115 is a yacht with an impressive layout, as the three decks offer 500 square metres of liveable space. There are four double cabins for guests on the lower deck, while the main deck's bow area is dedicated entirely to the owner's apartment - 40 square metres that guarantee perfect privacy.

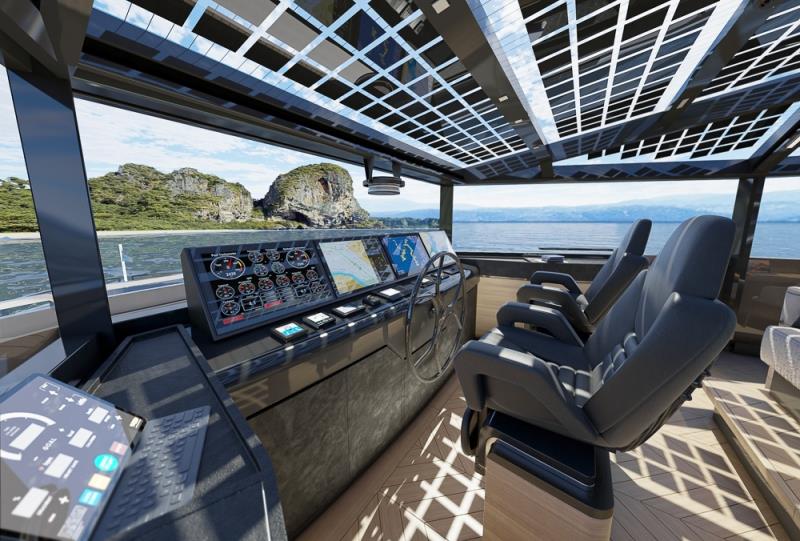

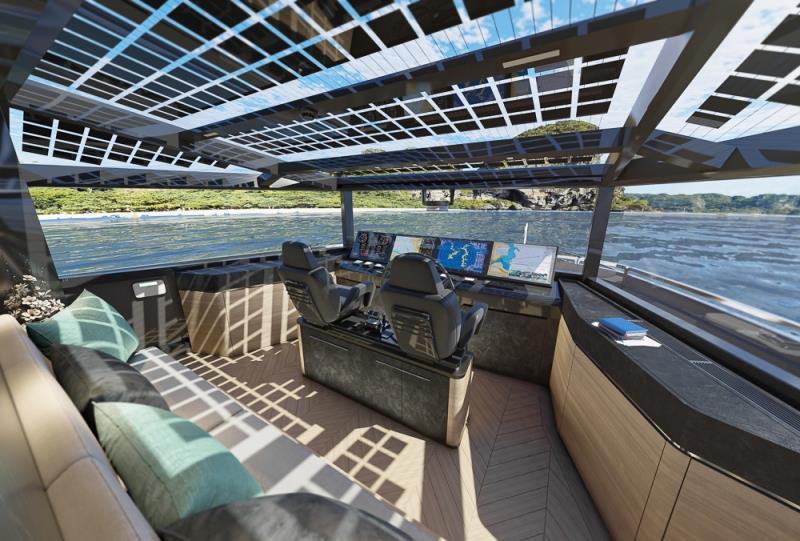

In the bow area of the lower deck, there are eight bunks for the crew in four cabins. The captain can eventually be assigned a cabin on the upper deck that is directly connected to the wheelhouse.
"All the previous A115 yachts have been very successful in the charter market and on average have been rented for over ten weeks a year," explains Ugo Pellegrino, the Sole Director of the Italian shipyard. "For this reason, when building this unit on spec, we decided to implement all the required commercial specifications, so the owner could decide to use the yacht for this purpose at a later date if so inclined. In any case, we are certain that even if the owner decides to use the yacht for personal cruising, the features required by charter class yachts will be to the advantage of the crew on board as well."
Technical Data
Hull: Semi-planing
Hull and main deck construction material: Fiberglass
Verandas construction material: Aluminium
Overall length: 34,99 m / 114'10"
Hull length: 32,75 m / 107'05"
Waterline length: 30,98 m / 101'08"
Maximum beam: 8,13 m / 26'08"
Maximum draft: 2,60 m / 8'06"
Displacement under full load: 185 tons / 396.830 lb
Gross tonnage: 266 GT
Engines: 2x MAN V8 - 1.300 hp
Maximum speed: ± 17 kn
Cruise speed: ± 14 kn
Generators: 2x 55 kW - 50 Hz
Air conditioning: 288.000 Btu/h
Solar panels energy: ± 4,5 kW
Guest beds: 12 beds in 6 cabins
Crew beds: 8 beds in 4 cabins
Fuel tank capacity: 23.000 l - 6.080 gal
Water tank capacity: 4.100 l - 1.080 gal
Grey Water tank capacity: 1.200 l - 320 gal
Sewage tank capacity: 1.000 l - 260 gal
Interior design: Arcadia Yachts in collaboration with HOTLAB
