Ronstan SHOCK Blocks - Simple Efficient Low Friction Rings
by Phil Anniss 22 Jan 2021 09:00 PST

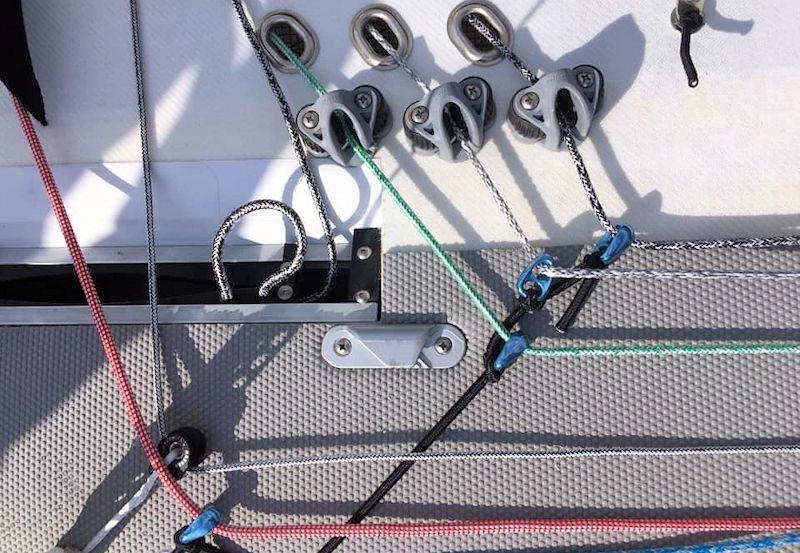

Ronstan SHOCK Blocks - simple efficient low friction rings © Kohlhoff Stuhlemmer Sailing
The name of the Ronstan SHOCK Block is derived from SHeaveless blOCK and reflects the growing trend for replacing ball bearing blocks, with "low friction rings", in a whole range of sailing system applications. Lightweight, high-load with no moving parts, Shock blocks are perfect for control lines and small purchase systems.

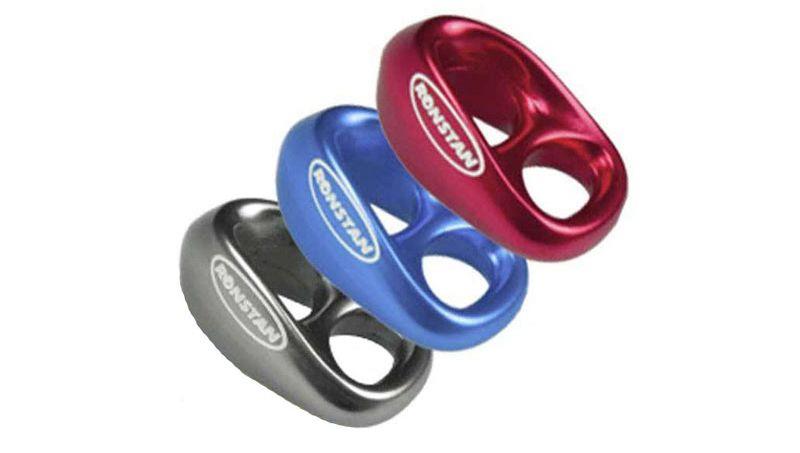

Made of anodised aluminium, Ronstan Shocks are available in two sizes (for lines up to 5mm and 10mm max diameters) and 3 colour options (Blue, Red and Grey). They are specifically designed for soft attachment; either spliced directly onto the end of a line, lashed or fixed in place with webbing.
The elongated attachment aperture has been designed to ensure correct alignment of the Shock to the line load, whilst the gentle overall 3D geometry is kind on the running line and forgiving to lead-angle variations.
Tech Specs
| Line Min (mm) | Line Max (mm) | Height (mm) | Width (mm) | Length (mm) | BL (kg) | Weight (g) |
|---|
| Shock 5mm | 1.5 | 5 | 8.5 | 14.9 | 22.9 | 350 | 2.5 |
|---|
| Shock 10mm | 3 | 10 | 14.5 | 24.8 | 36 | 1000 | 12 |
|---|
Key Benefits
- Lightweight
- Compact
- Cost effective
- NO moving parts - maintenance free
- Durable
- Colour coded
- Impact resistant
- Strength to weight ratio
- Soft attachment
Applications
- Line deflectors
- Purchase systems
- In-hauls / Out-hauls / Tweakers
- Lazy jacks
- Dinghy Vang
- Cunningham
Summary
It is obvious that a lot of thought and engineering has gone into creating such a simple product. If you have a dinghy, sportsboat or any yacht with small diameter control lines; armed with a handful of Ronstan Shocks, some single braid Dyneema® and bungy cord, you can transform your onboard systems!
You can view Ronstan Shocks online or if you have any questions about any deck hardware issues, please feel free to contact us at support@upffront.com or via the Deck Hardware enquiry form.
