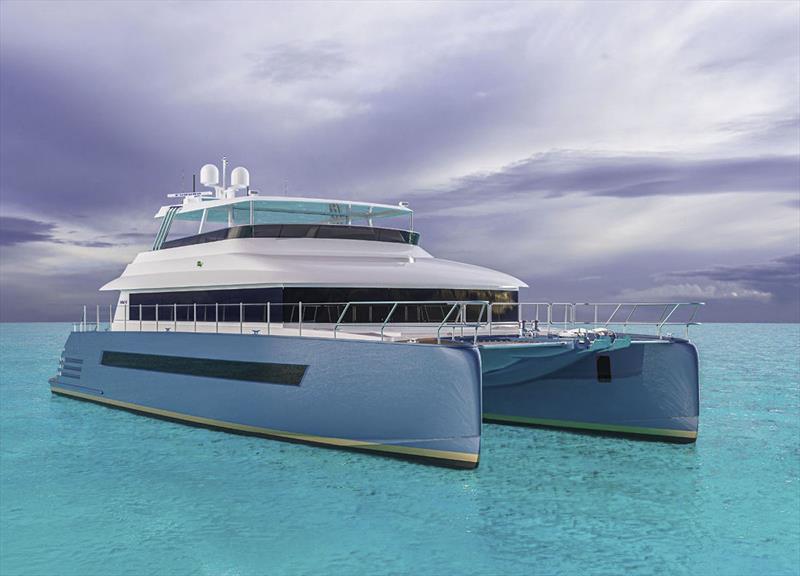

Introducing StellarCAT Power Catamarans

by StellarCAT 16 Oct 2021 17:06 PDT

Longstanding superyacht new-build, refit and project management expert StellarPM has announced a new series of StellarCAT power catamarans.

Constructed fully in highest grade marine aluminium the series initially offers 20m and 25m models simply entitled the StellarCAT AL20-2 and StellarCAT AL25-2.

Both models offer accommodation options up to six staterooms with two crew cabins.

Vast deck space and internal volume are characteristics of the series and different engine configurations offer performance figures with speeds of up to 30 knots and ranges of up to 3600 nm.

Class-leading safety, stability and comfort are foremost features and exceptional fuel economy is delivered through Volvo IPS series engines.

The StellarCAT concept is underlined by a Lighter, Stronger, Safer, Faster and Further precept with the design and construction emphasis being on supreme quality yachtbuilding. All StellarCATs will be built to ABS rules and CE Cat A12 conformity using StellarPM's ProjectPerfectTM analytical construction tracking system for precise calculation of construction performance and progress. Providing Owners, Captains, or Project Managers with the most accurate, definitive, and immediate time, cost and progress tracking and reporting available throughout the build.

Chris Holmes, Principal and Founder of StellarPM says "We are so excited with the launch of the StellarCAT series. Being able to offer the safest pleasure powercats with the quality and strength of construction that our systems and metal construction brings will deliver superior vessels not seen before in this size range. StellarPM is a unique data, production, and people management firm delivering the most comprehensive information and tools needed to successfully construct or refit a yacht from concept to completion. We've been doing this for over 20 years with considerably larger boats and all that knowledge and experience will shine through the StellarCAT brand."

Further models are being finalised and will be unveiled in months to come.

StellarCAT AL20-2 Brief Specification:

Main Characteristics

  • LOL - 20.58m (67ft 6")
  • Beam - 9.80m (32ft 2")
  • Draft - 1.20m (3ft 11")
  • Fuel - 18,200 lts (4,800 US gal)
  • Freshwater - 4,650 lts (1,230 US gal)
  • Blackwater - 3,620 lts (950 US gal)
  • Greywater - 4,250 lts (1,120 US gal)
  • Lubricating Oil - 200 lts (52 US gal)

Performance

  • Maximum speed (2x IPS500) 14 Knots
  • Maximum speed (4x IPS1050) 27 Knots
  • High Cruise (2x IPS500) 12.5 Knots
  • High Cruise (4x IPS1050) 25 Knots
  • Low Cruise Range (2x IPS500) 3,600 Nm
  • Low Cruise Range (4x IPS1050) 1,450 Nm

Engine room #1

  • One (1) Volvo Volvo Penta D6-IPS 500
  • One (1) Generator, Onan 25kw 1800rpm
  • One (1) 10" Ventilation fan with speed control
  • One (1) 500 US gallon fuel day tank
  • Lube oil change system
  • Automatic fire suppression system

Engine room #2

  • One (1) Volvo Penta D6-IPS 500
  • Dometic Air conditioning w/ reverse cycle
  • One (1) 10" Ventilation fan with speed control
  • One (1) 500 US gallon fuel day tank
  • Lube oil change system
  • Automatic fire suppression system

Engine room #2

  • Hydraulic transformer platform
  • Fuel tank transfer management system
  • 2 x Headhunter Mach 5 freshwater pumps
  • Hot water circulating system
  • Watermaker; Village Marine 1200gpd
  • Compressed air system

Machinery

  • Fuel tank transfer management system
  • Hydraulic transformer platform
  • Headhunter Mach 5 freshwater pump
  • Hot water circulating system
  • Watermaker; Village Marine 800gpd
  • Compressed air system

Electrical

  • 220v 60hz single phase power circuits
  • Lithium-iron storage batteries
  • Mastervolt Combi invertor/Charger
  • C-Zone, expandable monitoring/control system
  • Solar panel system. with power management
  • Multi zone TV/Audio electronics package

Interior general

  • Three (3) Guest staterooms
  • One (1) Crew cabin
  • Walnut wood furniture
  • Leather/Stone countertops in all guest area
  • Indirect, toe-kick lights in all guest areas
  • LED overhead lighting

Guest area

  • Fusion audio system in each cabin
  • Vimar light switches and outlets
  • Main Salon powered window blinds with remote
  • Marble tile shower enclosures
  • Headhunter Royal flush toilets

Exterior

  • Four person Jacuzzi
  • Flybridge full wet bar & grill area
  • FWD deck netted sunbed areas
  • Teak decking throughout
  • Freshwater deck wash down system

Deck equipment

  • Two (2) Muir 3500lb electric vertical windlass
  • Two (2) Muir VC1500 electric capstans
  • Stainless steel bollard type cleats
  • Removable stainless steel swim step rails

(Major options available)

  • Four to six guest stateroom layouts
  • Forepeak Crew cabins
  • Fully enclosed pilothouse
  • Twin and Quad engine upgrades
  • Extended Aft deck area

StellarCAT AL25-2 Brief Specification:

Main Characteristics

  • LOA - 25.12m (82 ft 5")
  • Beam - 11.61m (38ft 1")
  • Draft - 1.48m (4ft 10")
  • Fuel - 30,660 lts (8,100 US gal)
  • Freshwater - 8,700 lts (2,300 US gal)
  • Blackwater - 6,800 lts (1,800 US gal)
  • Greywater - 7,600 lts (2,000 US gal)
  • Lubricating Oil - 200 lts (52 US gal)

Performance

  • Maximum speed (2x IPS1050) 21 Knots
  • Maximum speed (4x IPS1050) 30 Knots
  • High Cruise (2 x IPS1050) 19 Knots
  • High Cruise (4x IPS1050) 25 Knots
  • Low Cruise Range (2x IPS1050) 3,450 Nm
  • Low Cruise Range (4x IPS1050) 2,650 Nm

Engine room #1

  • One (1) Volvo Penta D13-IPS 1050 Tier III
  • One (1) Generator, Onan 25kw 1800rpm
  • One (1) 10" Ventilation fan with speed control
  • One (1) 900 US gallon fuel day tank
  • Lube oil change system
  • Automatic fire suppression system

Engine room #2

  • One (1) Volvo Penta D13-IPS 1050 Tier III
  • One (1) Generator, Onan 25kw 1800rpm
  • Dometic Air conditioning w/ reverse cycle
  • One (1) 10" Ventilation fan with speed control
  • One (1) 900 US gallon fuel day tank
  • Lube oil change system
  • Automatic fire suppression system

Engine room #2

  • Hydraulic transformer platform
  • Fuel tank transfer management system
  • 2 x Headhunter Mach 5 freshwater pumps
  • Hot water circulating system
  • Watermaker; Village Marine 1200gpd
  • Compressed air system

Machinery

  • Hydraulic transformer platform
  • Fuel tank transfer management system
  • 2 x Headhunter Mach 5 freshwater pumps
  • Hot water circulating system
  • Watermaker; Village Marine 1200gpd
  • Compressed air system

Electrical

  • 220v 60hz three phase power circuits
  • Lithium-iron house storage batteries
  • Mastervolt Combi invertor/Charger
  • C-Zone, expandable monitoring/control system
  • Solar panel system. with power management
  • Multi zone TV/Audio electronics package

Interior general

  • Four (4) Guest staterooms
  • Two (2) Crew cabins
  • Walnut wood furniture
  • Leather/Stone countertops in all guest area
  • Indirect, toe-kick lights in all guest areas
  • LED overhead lighting

Guest area

  • Fusion audio system in each cabin
  • Vimar light switches and outlets
  • Main Salon powered window blinds with remote
  • Marble tile shower enclosures
  • Headhunter Royal flush toilets

Exterior

  • Four person Jacuzzi
  • Flybridge full wet bar & grill area
  • FWD deck netted sunbed areas
  • Teak decking throughout
  • Freshwater deck wash down system

Deck equipment

  • Two (2) Muir 4500lb electric vertical windlass
  • Two (2) Muir VC850 electric capstans
  • Stainless steel bollard type cleats
  • Removable stainless steel swim step rails

(Major options available)

  • Five and Six guest stateroom layouts
  • Blackwater treatment plant
  • Twin and Quad engine upgrades
  • Power convertor
  • Extended Aft deck area

For more information visit www.stellarcat.global.
